Altius™

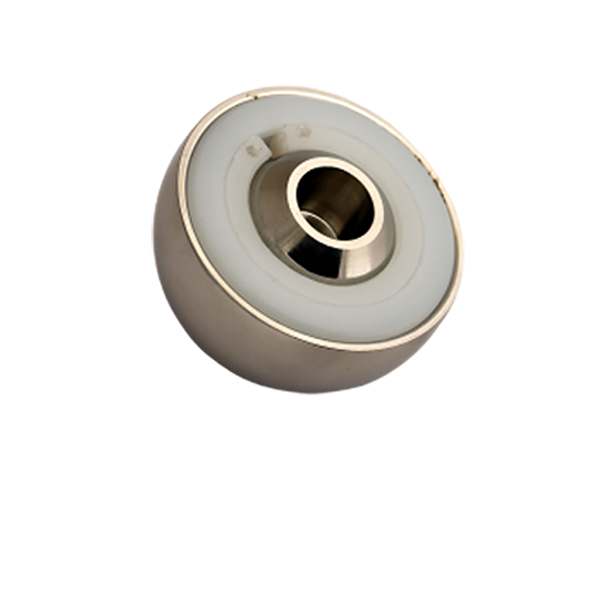

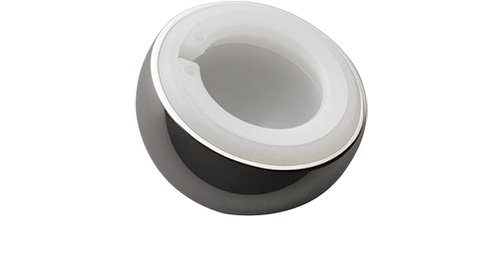

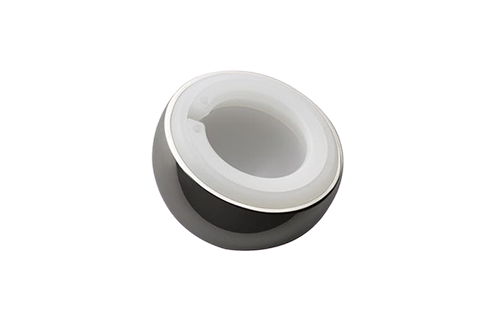

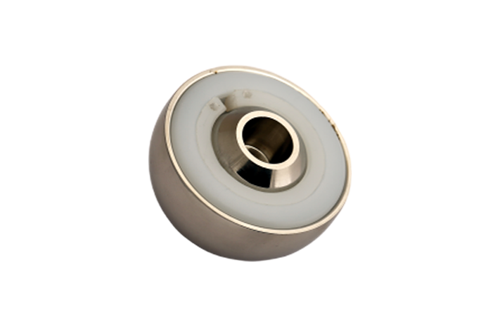

Bipolar Hip Replacement System
The basic concept of Modular Bipolar is based in double ball system. The external component is generally immobile in the natural acetabulum area. It’s the Multi-dimensional rotational movement between the femoral head and outer shell facilitates the articulation inside the acetabulum area.
overview
- A large array of component allows precise patient matching for optimal patient fit
- Outer diameters from 36 to 56mm allow the surgeon to meet the unique challenges posed in revision and extended situation.
- The bipolar cup offers use with 22, 28mm femoral heads.
- Outer Shell Material: High Nitrogen Stainless Steel (HNS)
- Sourced from Schwerte, Germany
- Linear and Locking Ring: UHMWPE
- Sourced from Orthoplastics Ltd, UK
Feature & Benefit
- Enhanced ROM resists the impingement to the UHMWPE locking ring.
- Multi polarity is achieved via multiple offsets within the system as cup sizes increase, the amount of eccentricity increases.
- Provides eccentricity that is proportional to the patient's anatomy.
- Simple Locking Ring Mechanism and Enhanced Stability.
- Superior pull-out strength resists the dislocation of the femoral head.
Sizing Chart
ALTIUS - Hip Femoral Side Options
| Cemeneted Hip Femoral Stem Sizes | 0 | N1 | N2 | N3 | S2 |
|---|---|---|---|---|---|
| Stem length( mm ) | 127 | 149 | 149 | 149 | 149 |
| Offset(mm) | 36 | 38 | 38 | 38 | 44.5 |
| Neck Angle | 125° | ||||
ALTIUS IM plug
| Size( Dia) | 8 | 10 | 12 | 14 | 16 |
|---|---|---|---|---|---|
| Length ( mm ) | 14.5 | 14.6 | 17.5 | 20 | 24.5 |
ALTIUS - Hip Acetabular Side Options
| Modular Bipolar cup (OD in mm) | 36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 | 52 | 54 | 56 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Femoral Head Options (in mm ) | 22 | 22 | 22 | 22 | 22/28 | 22/28 | 22/28 | 22/28 | 22/28 | 22/28 | 22/28 |
| Hip Femoral Head ( OD in mm) | 22 | 22 | 22 | 22 | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hip Femoral Head Offset (mm) | 0 ,+4 , +8 | -4 , 0 ,+4 , +8 | |||||||||
